4K 30Hz H.265/264 Encoder with HDMI Loop-out-Shenzhen Tonly Technology Co.Ltd

Main Features:

Input: Up to 2160P (4K) 30 (Minimum 320*180), 3.5MM line-in audio
Output: HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ UDP Unicast Multicast/ RTP/ SRT
Encoded resolution: 320*180 to 2160P@30fps
Encoding : HEVC H.265/ AVC H.264 MPEG-4
Smart encoding: Normal mode, B frame mode (compression rate- 50), Smooth bitrate, Low latency.

Specifications

Technical

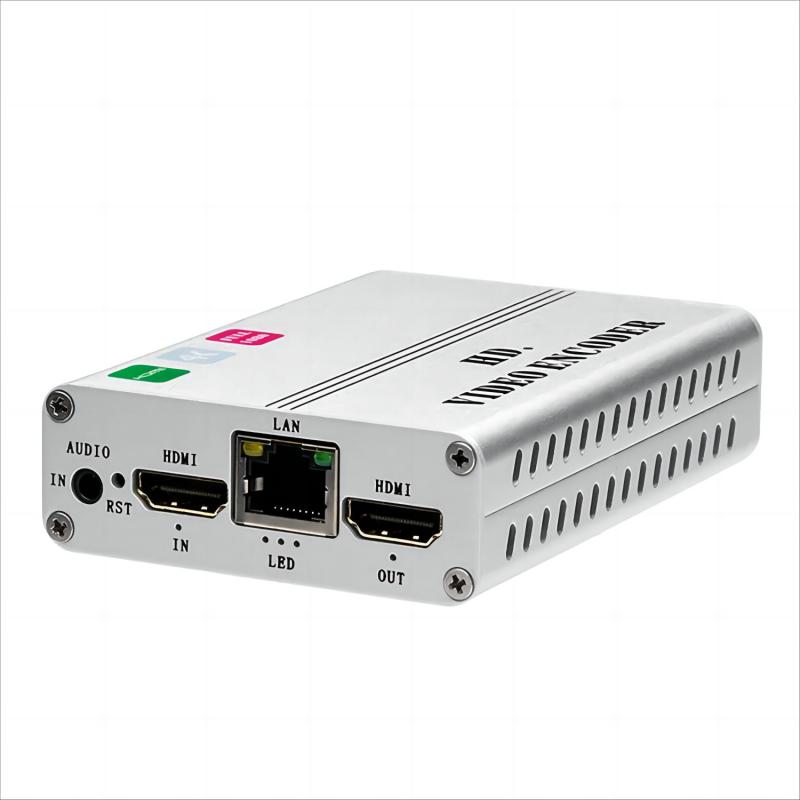

Input/Output	1 x HDMI IN (19-pin female HDMI Type-A) 1 x HDMI OUT (19-pin female HDMI Type-A) 1 x AUDIO IN (3.5mm stereo jack) 1 x DC 12V connector 1 x LAN OUT (100M / 1000M adaptive RJ45, H.265/264 TS stream) 1 x TF-CARD SLOT
Coding Standard	H.265/HEVC, H.264/AVC
Input Resolution Supported	3840×2160, 2560×1440, 2048×1152, 1920×1080p, 1920×1080i, 1280×720p, 720×576i, 720×576p, 640×480i, (Customizable)
Encoded Size	640×360~1920×1080（Customizable）
Video Bitrate	Rate control: CBR/VBR 16KBIT/S~50MBIT/S
Video Frame Rate	5-60 FPS
OSD	Text, images
Audio Coding	AAC/MP3/ G.711
Audio Bitrate	64Kb/s~384Kb/s
Sampling Rate	32000,44100 etc
Network Protocol	Supports HTTP, RTSP, RTMP, RTMPS, ONVIF, UDP, multicast, unicast

In the Box

VS03 x1
Power Supply (DC 12 V 1A) x1
User Manual x1

Documents & Softwares

Troubleshooting FAQ

1、What equipment can be charged with cr100W01-UK 100W charger?

Answer: CR100W01-UK chargers can charge devices: earphones, mobile phones, tablets, PSPs, notebooks, cameras, and other digital electronic devices

2、What is the difference between gallium nitride chargers and regular chargers?

A: The basic material of traditional ordinary chargers is silicon, which is also a very important material in the electronics industry. However, as the limit of silicon is gradually approaching, the development of silicon has reached a certain bottleneck, and many manufacturers have begun to work hard to find more suitable materials. replacement of. Gallium Nitride (GaN) is known as the third generation semiconductor material. Compared with silicon, its performance has been doubled, and it is more suitable for high-power devices, smaller in size, and higher in power density than silicon. The frequency of gallium nitride chips is much higher than that of silicon, which effectively reduces the volume of components such as internal transformers. At the same time, the excellent heat dissipation performance also makes the layout of internal components more precise, which finally perfectly solves the contradiction between charging speed and portability. Clearly, gallium nitride is the replacement material we are looking for.

3、 What fast charging protocols does the CR100W01-UK 100W charger support?

A: The supported protocols are: QC3.0/FCP/FCP/USB PD/SCP

4、Can I use it to put photos from my camera (micro sd or sd card) directly to my phone?

A: Yes, as long as the phone supports copying

5、What is the difference between HDMI extender and HDMI IP extender?

Answer: 1) The difference between the specific HDMI extender and the HDMI IP extender is a key point, but the router or switch, the HDMI extender one-sending and one-receiving single network cable The longest signal transmission process does not exceed 200M. The HDMI IP extender can send and receive more than once. Through the router or switch, at most one can transmit TX, and the 254 receiving end RX signal can be transmitted at the same time; 2) The multi-broadband wire with ip protocol is inside, which can realize the ip dialing function, eliminating the need for network cables. The use of; without the ordinary can only transmit images and sounds.

6、What is the maximum supported resolution of the VGA interface?

Answer: Due to a series of problems such as wire and signal interference, VGA can generally only reach 1200p resolution when used, and the fonts are easy to be blurred at high resolution. If the signal line is long, the image will be smeared.

7、Can products that generally support 4K30Hz resolution support 2560*1440*60Hz or 3840*2160*60Hz YUV4:

Answer: Yes
