4K UHD & 60Hz High Refresh Rate:
This 4K 60Hz Encoder are with video processing technology, it allows convert any video resolution (below or equal to 4K 60Hz) to 4K 60Hz out over gigabit Ethernet.
AVC & HEVC compression:
It supports both H.265 (MAIN profile) And H.264 (HIGH/ MAIN/ BASELINE profile), based on the years of experience in video processing industry, TONLY enabled good video quality under low bit such as 800 kb/s for 720, 1500 for HEVC.
Auto smooth bitrate encoding:
The encoder will automatically detect the video fluctuation, then automatically modify the video bit to make sure the video quality and completenes
Excellent Compatibility:
Support RTMP/RTMPS/RTSP/UDP/RTP/HTTP/FLV/HLS/TS protocols,you can do live straming on facebook, youtube, ustream, Wowza ect.
Excellent services
Lifetime warranty, Solution analyzing, we supply customization service includes WEB GUI, laser/ color printing, protocol, physical interfaces!
Technical | |

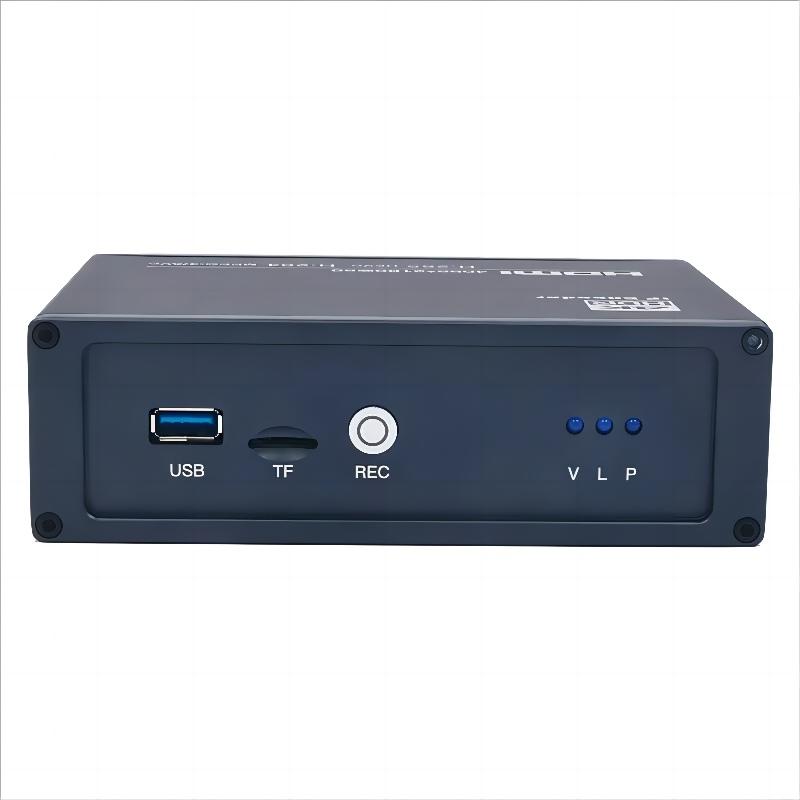

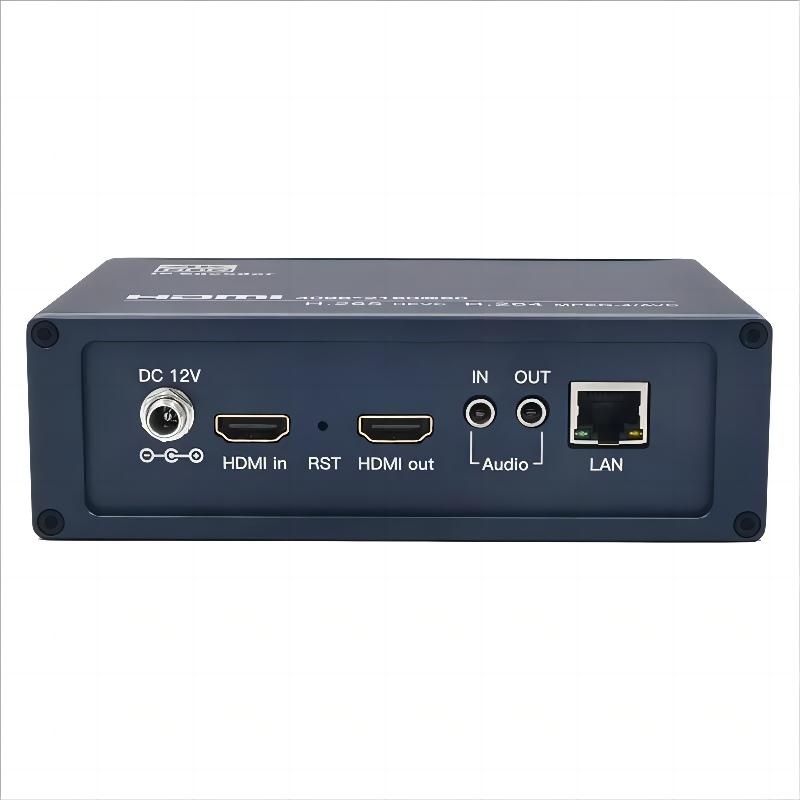

Input/Output | 1 x HDMI IN (19-pin female HDMI Type-A) 1 x HDMI OUT (19-pin female HDMI Type-A) 1 x AUDIO IN (3.5mm stereo jack) 1 x AUDIO OUT (3.5mm stereo jack) 1 x DC 12V connector 1 x LAN OUT (100M / 1000M adaptive RJ45, H.265/264 TS stream) 1 x TF-CARD SLOT 1 x USB ( female USB-A) |
Coding Standard | H.265/HEVC main profile, H.264/AVC High/Main/Baseline Profile, MJPEG/JPEG baseline |
Input Resolution Supported | 4096x2160, 3840×2160, 2560×1440, 2048×1152, 1920×1080p, 1920×1080i, 1280×720p, 720×576i, 720×576p, 640×480i, (Customizable) |
Encoded Size | 640×360 to 4096x2160(Customizable) |
Video Bitrate | Rate control: CBR/VBR 0.1Mbps to 100Mbps |
Video Frame Rate | 5-144 FPS |
OSD | Text, images |
Audio Coding | AAC/AAC+/AAC++/MP3/MP2/AC3/ G.711 |
Audio Bitrate | 12Kbps to 640Kbps |
Sampling Rate | 44.1kHz/48kHz |
Network Protocol | Supports HTTP, HTTPS, HLS, FLV, RTSP, RTMP, RTMPS, ONVIF, UDP,RTP |
Answer: CR100W01-UK chargers can charge devices: earphones, mobile phones, tablets, PSPs, notebooks, cameras, and other digital electronic devices
A: The basic material of traditional ordinary chargers is silicon, which is also a very important material in the electronics industry. However, as the limit of silicon is gradually approaching, the development of silicon has reached a certain bottleneck, and many manufacturers have begun to work hard to find more suitable materials. replacement of. Gallium Nitride (GaN) is known as the third generation semiconductor material. Compared with silicon, its performance has been doubled, and it is more suitable for high-power devices, smaller in size, and higher in power density than silicon. The frequency of gallium nitride chips is much higher than that of silicon, which effectively reduces the volume of components such as internal transformers. At the same time, the excellent heat dissipation performance also makes the layout of internal components more precise, which finally perfectly solves the contradiction between charging speed and portability. Clearly, gallium nitride is the replacement material we are looking for.
A: The supported protocols are: QC3.0/FCP/FCP/USB PD/SCP
A: Yes, as long as the phone supports copying
Answer: 1) The difference between the specific HDMI extender and the HDMI IP extender is a key point, but the router or switch, the HDMI extender one-sending and one-receiving single network cable The longest signal transmission process does not exceed 200M. The HDMI IP extender can send and receive more than once. Through the router or switch, at most one can transmit TX, and the 254 receiving end RX signal can be transmitted at the same time; 2) The multi-broadband wire with ip protocol is inside, which can realize the ip dialing function, eliminating the need for network cables. The use of; without the ordinary can only transmit images and sounds.
Answer: Due to a series of problems such as wire and signal interference, VGA can generally only reach 1200p resolution when used, and the fonts are easy to be blurred at high resolution. If the signal line is long, the image will be smeared.
Answer: Yes

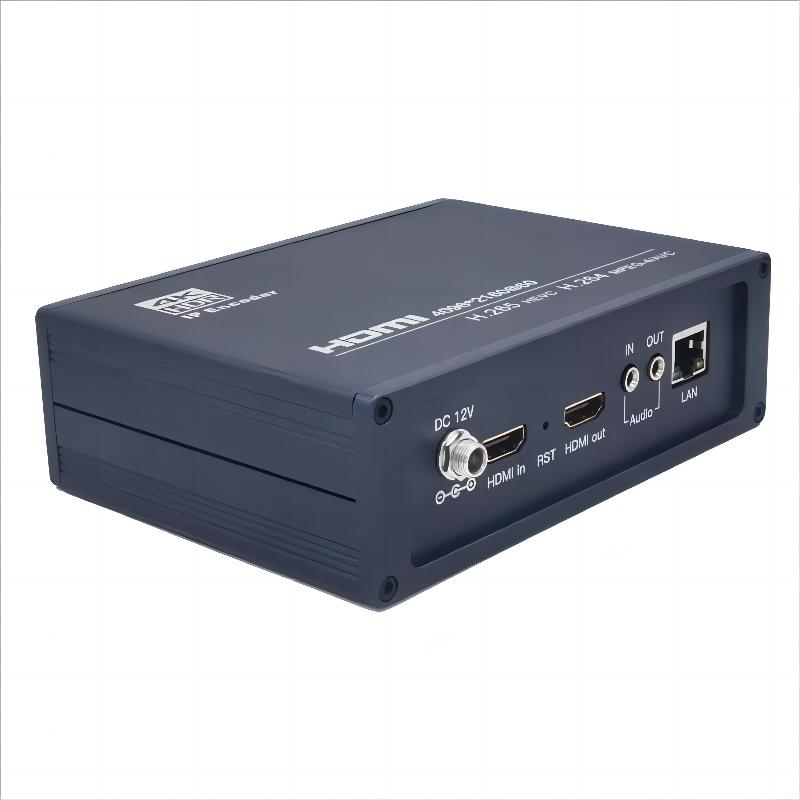

4K 60Hz H.265 encoder with HDMI loop-out, audio in and out, video recording
