4 PORT USB 2.0 + RS232 K/M EXTENDER WITH POC

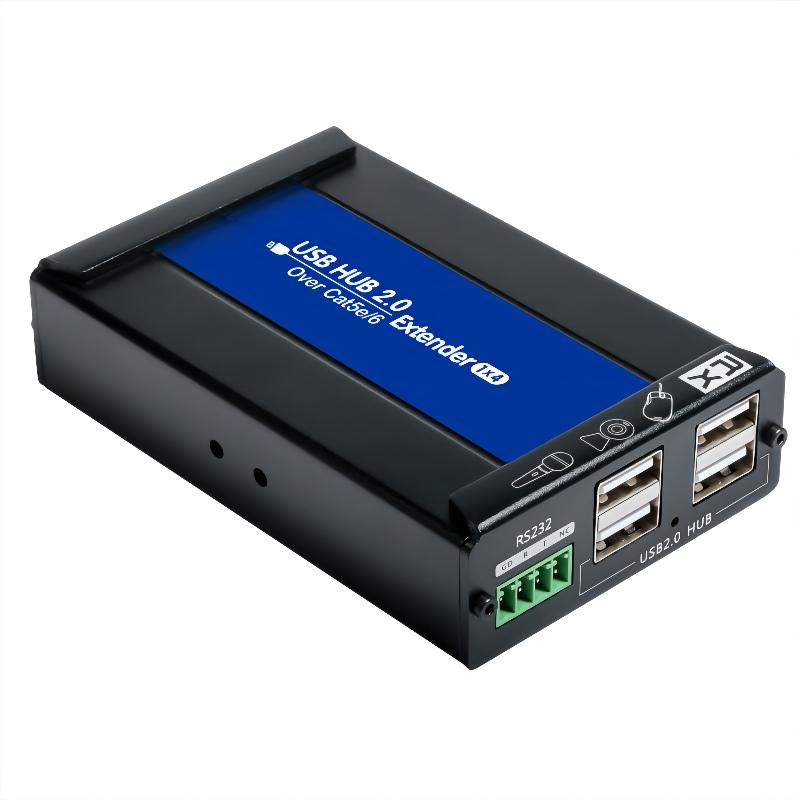

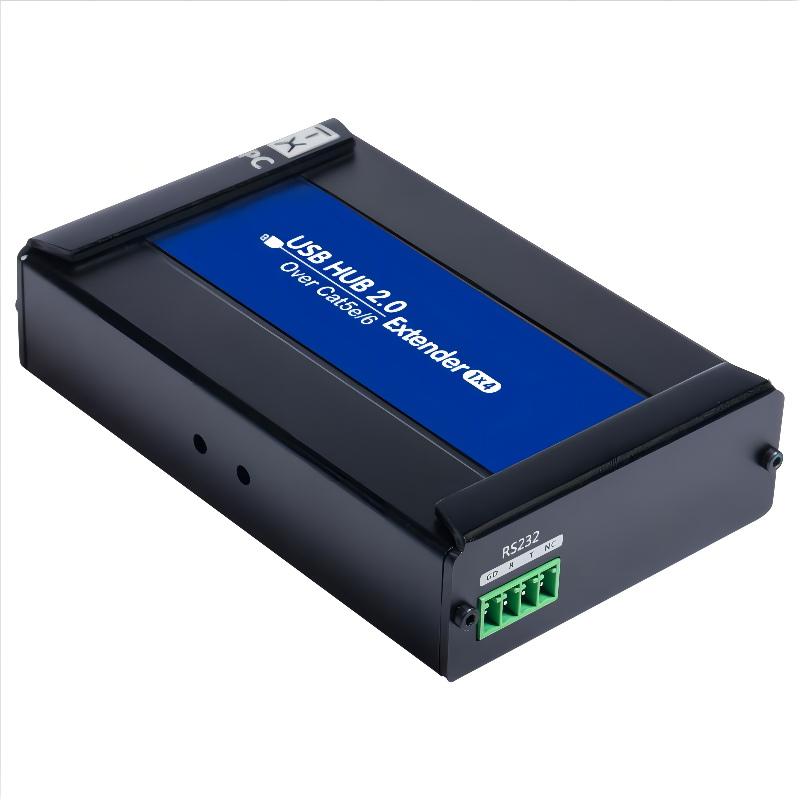

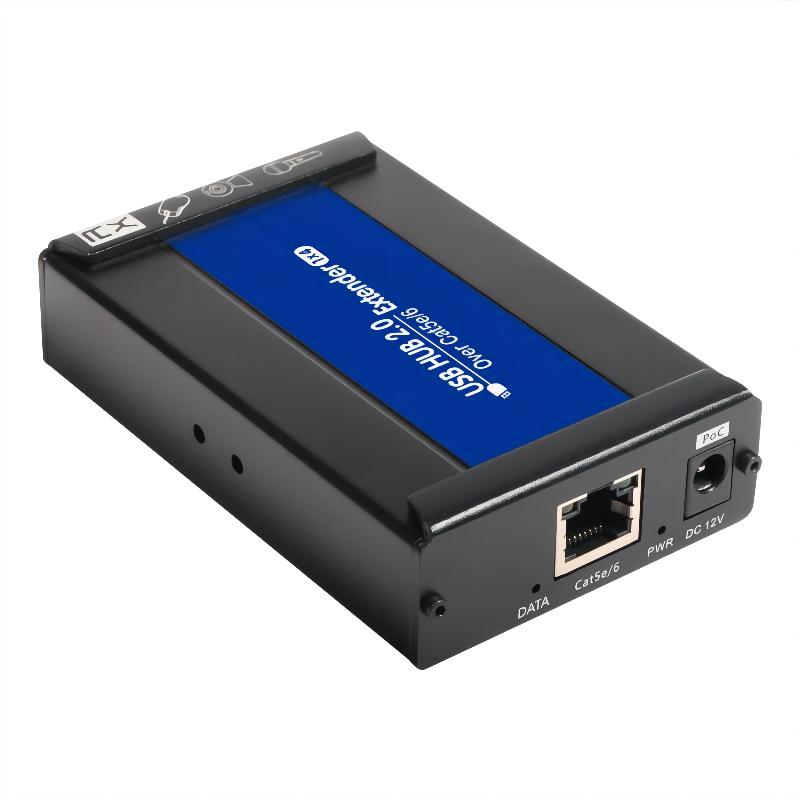

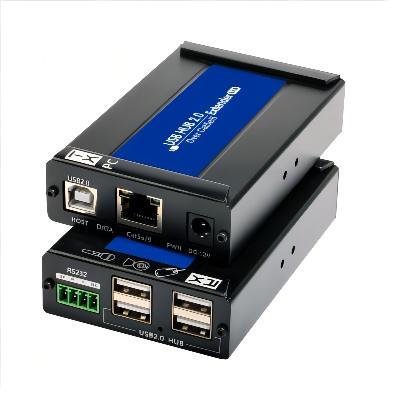

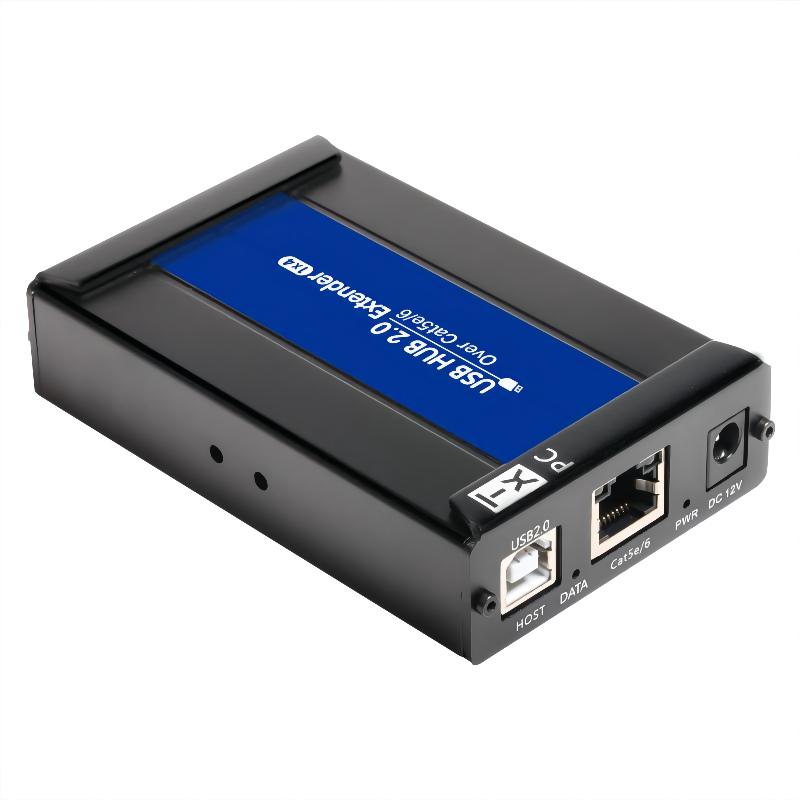

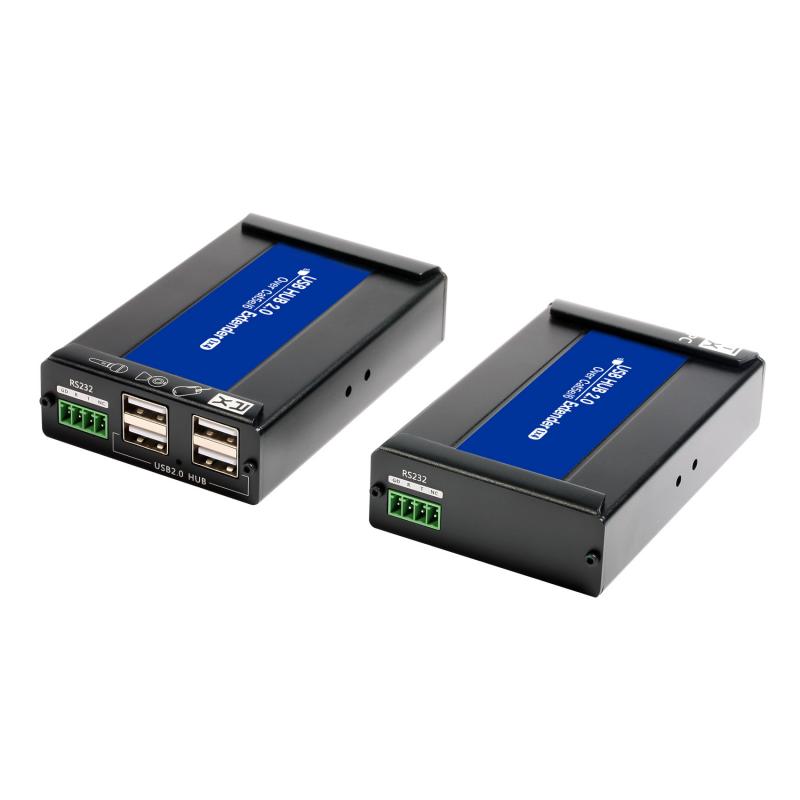

The U2EX60S USB2.0 extender with RS-232 pass-through is a transmitter (TX) and receiver (RX) kit that can extend the USB-HID devices( mouse and keyboard) signal up to 80m/263ft and USB2.0 storage device signal up to 60m/197ft via Cat-X cable. The built-in USB HUB in the RX supports up to 4 USB2.0 ports. It supports PoC function, only one power supply needed on TX or RX side.


Main Features:

4 ports USB 2 .0 Extension
1 port RS232 pass through
Supports high-speed USB 2.0 (Up to 480Mbps) storage device over Cat 5e/Cat 6 cable up to 60m (197 ft) and USB-HID device up to 80m (263ft)
True plug-and-play, 100% hardware solution with no driver installation required
Supports all major operating systems: Windows, Mac OS and Linux
Compatible with USB 1.1 and USB peripherals
PoC : 1pc 12V/ 1A DC adapter power 2 devices

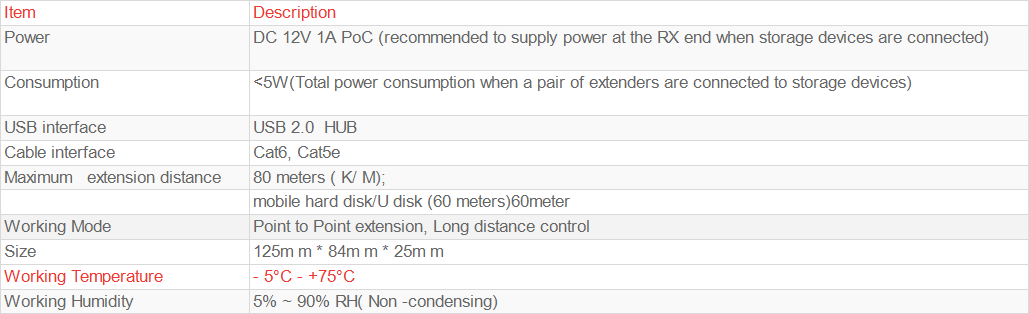

Specifications

In the Box

U2E60S(TX) x1
U2E60S(RX) x1
Power Supply (DC 12 V 1A) x1
USB 2.0 Type-B to Type-A Cable x1
Mounting Brackets (Pair) x2
User Manual x1

Documents & Softwares

Download User Manual

Download Connection Diagram
